PX320-LT

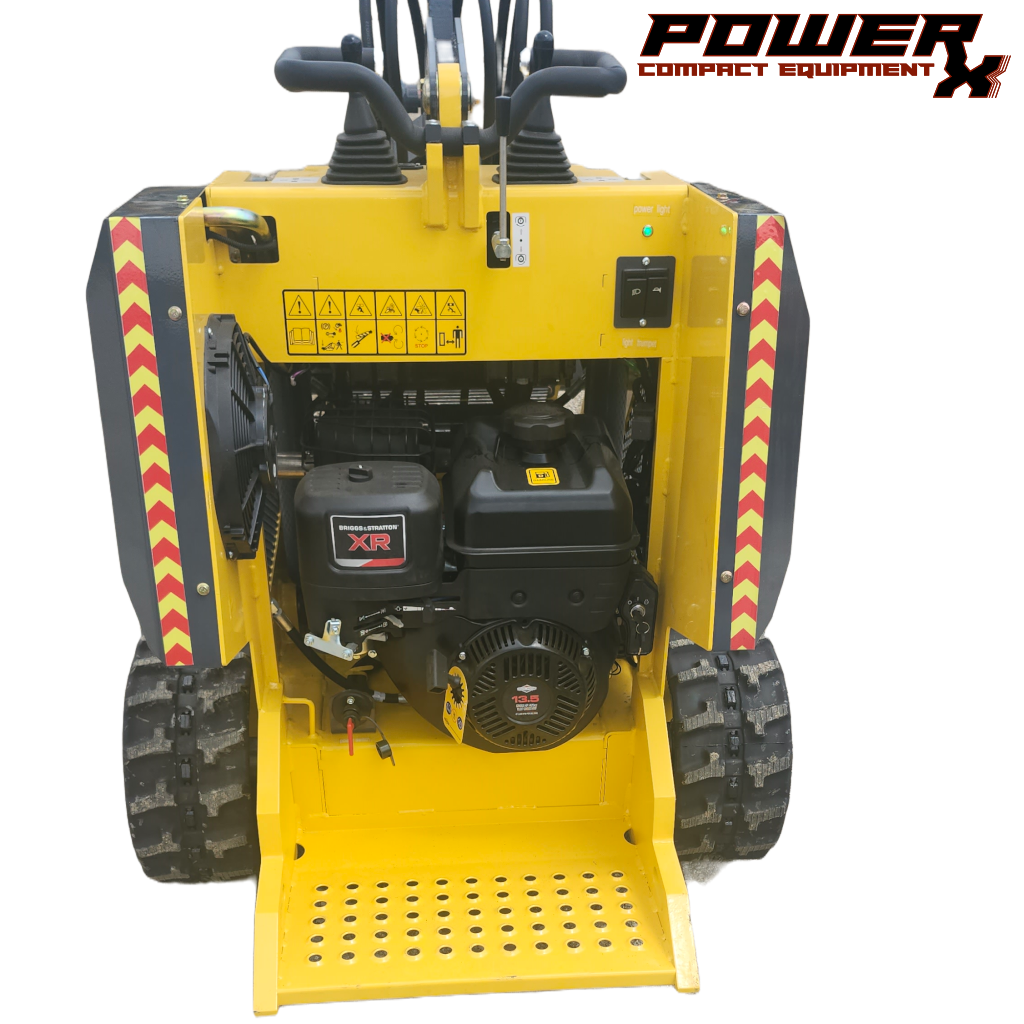

PX320-LT Tracked Mini Skid Steer

PX320-LT Tracked Mini Skid Steer

$8,995.00 USD
$8,995.00 USD
Sale Sold out
  • Same build as the PX320-L with the addition of tracks in lieu of wheels and tires.
  • Engine Brand: B&S; Rated Power/HP: 13.5; Rated Speed/rpm: 3000; Number of cylinders: 1; Air intake way: Naturally Aspirated; Displacement/cc: 420: Emissions Standards: EPA; Rated Operating Capacity/Kg: 200
  • Maximum Operating Capacity/Kg: 300; Maximum Breakout Force/KN: 350; Bucket Capacity/m3: 0.12; Driving Speed/ km/h: 0-6; Total Cycling Time/s: 9; System Operating Pressure /bar: 17-21; Fuel Tank Capacity/L: 5; Operating Weight/Kg: 900; Tire Size: 15*72
  • Height at Maximum Extension/mm: 2450; Height To the the bucket pin /mm: 1870; Vehicle height: 1300; Maximum Height as Lay the bucket flat/mm: 1810; Total length without appendages/mm: 1450; Length With standard bucket /mm: 2100; Maximum height unloading Angle: 34°
  • Dumping Height/mm: 1510; Discharge Distance/mm: 450; The flip Angle of the bucket on the ground: 27°; Bucket flip Angle at highest Pos.: 114°; Wheel Base/mm: 850; Ground Clearance/mm: 150; Tail Length/mm: 280; Wheel base (standard tire) /mm: 720; Vehicle width (standard tire) /mm: 1000; Bucket width/mm: 1000
  • Thanks to its compact and user-friendly design, this payloader machine is perfect for drilling, digging, grabbing, bull-dozing, ditch-cleaning, small excavations, rock-breaking, landscaping or construction purposes.
  • Multiple attachments available for all of your construction needs.
  • 10715000
